Light weight P10.4 Transparent led screens 100x50cm Panel for shopping window ads

Name: Light weight P104 Transparent led screens 100x50cm Panel for shopping window ads
Brand: Bako Vision
Price: 1 USD

Brand Name : Bako Vision

Model Number : BK-10.4

Certification : CE, RoHs, FCC

Place of Origin : China

MOQ : 1sqm

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10,000sqm

Delivery Time : 25-30 days

Packaging Details : wooden box

Pitch : P10.4

Led Type : SMD1921

Cabinet size : 1000*500mm

Brightness : 1200nits

Powre supply : Meanwell

Contrller : Linsn/Nova

Contact Now

Light weight P10.4 Transparent led screens 100x50cm Panel for shopping window ads

P10.4 Transparent led screens Features:

1. Light-weighted: only 11kg per sqm;

2. Easy installation;

3. High transparency up to 70%;

4. Any shape size is avaible;

P10.4 Transparent led screens Parameters

	BG-10
Physical Pitch	10.4x10.4mm
Pixel Configuration	SMD1921
Pixel Density	9216pixels/m²
Module Dimensions (WxH)(mm)	500x125
Panel Dimensions (WxH)(mm)	1000x500
NO. of Modules Per Panel(WxH)	2x4
Physical Resolution of Module(WxH)	48x12
Physical Resolution of Panel(WxH)	96x48
Panel Material	Aluminum
Single Cabinet Weight	<14kg/m²
Gray Scale	16bit
Colours	281 trillion
Contrast Ratio	2000:01:00
Average Power Consumption	140W/m²
Max. Power Consumption	400W/m²
Operating Temp/Humidity	-10ºC-60ºC/ 10%-60%
Storage Temp/Humidity	-30ºC-60ºC/ 10%-60%
Refresh Rate	>1920Hz
Brightness	1000~4200 nits
Horizontal Viewing Angle	160°
Vertical Viewing Angle	140°
Expected Lifetime	100,000Hrs
IP Rating(Front/Rear)	IP30
Servicing	Rear
Scan Method	1/2 or 1/4 Scan

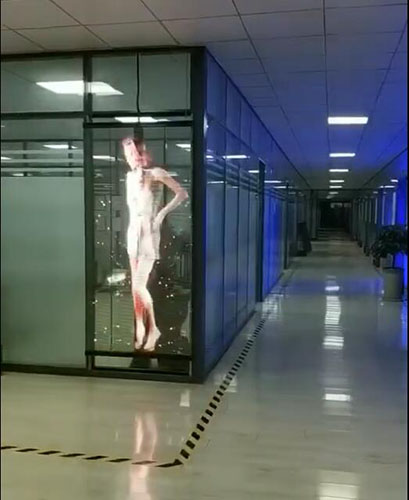

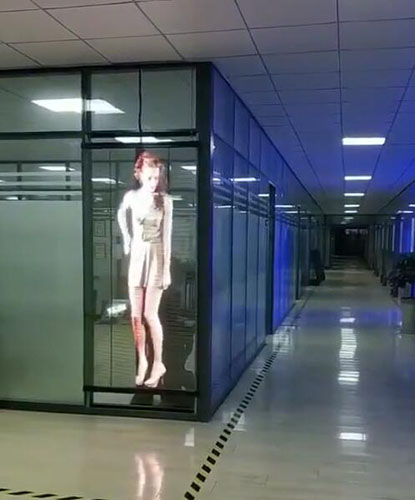

Cases:

Light weight P10.4 Transparent led screens 100x50cm Panel for shopping window ads
